Some Speedster have bolts through the front hubs. Normally there are
drive shafts that go through the hubs on a front wheel drive car. If
those bolts are not there, then the bearing won't be under pressure
(normally a drive shaft is tightened with 200-300Nm). There is no
danger, but when using the car more on the circuit, it is better to put

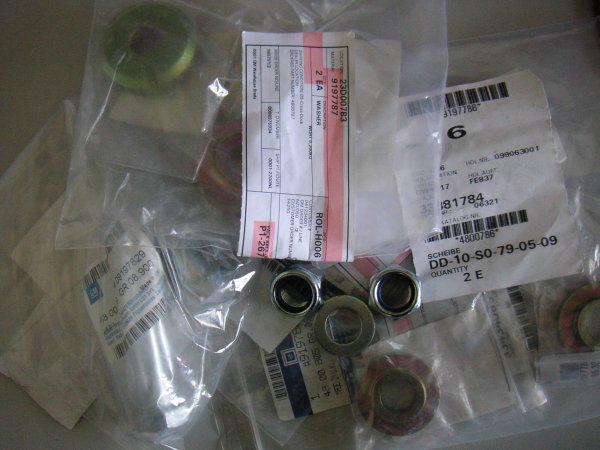

these bolts in. The parts you need to do this are: Part Qty Part number
BOLT,M16 X 100,HUB TO HUB CARRIER 2 48 00 829
WASHER,M16 X 30,HUB TO HUB CARRIER 2 48 00 798
SHIELD,WHEEL BEARING,INNER 2 48 00 805
WASHER,THRUST,HUB,INNER 2 48 00 787
WASHER,THRUST,HUB,OUTER 2 48 00 786

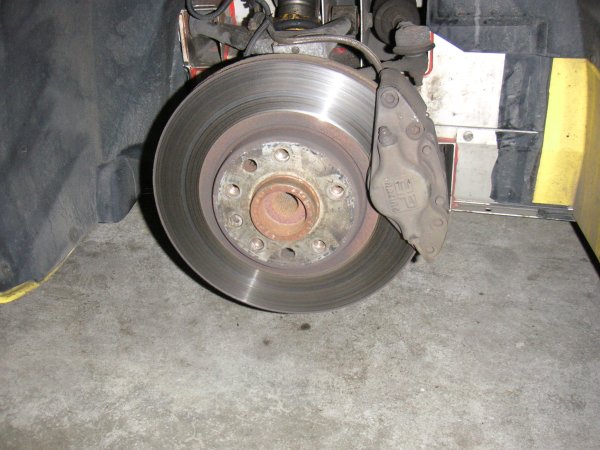

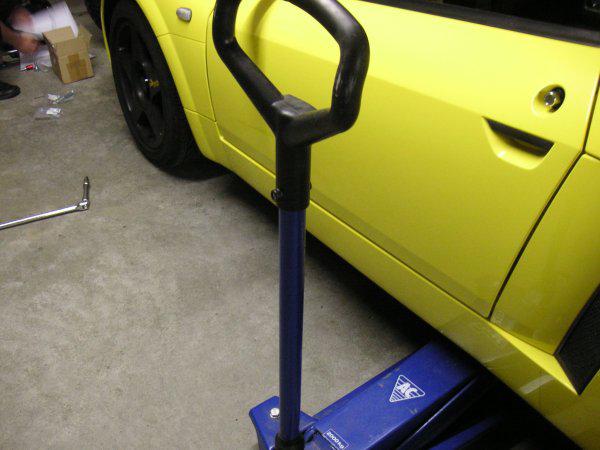

NUT,HEX.,SELF LOCKING,M16,HUB RETAINING 2 48 00 793 And that amounts to a pile of steel 😊.  For starters first jack up the car and take off the wheel.

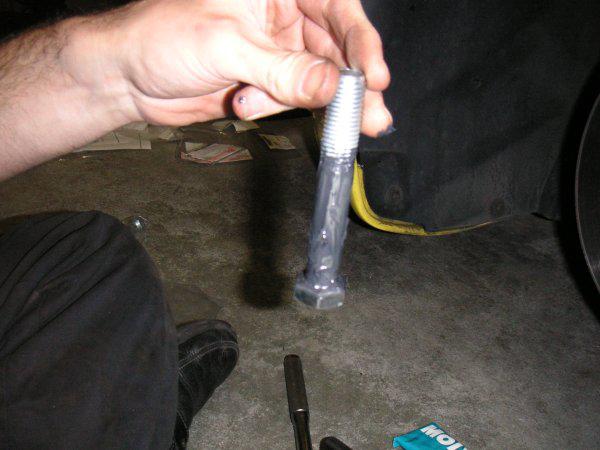

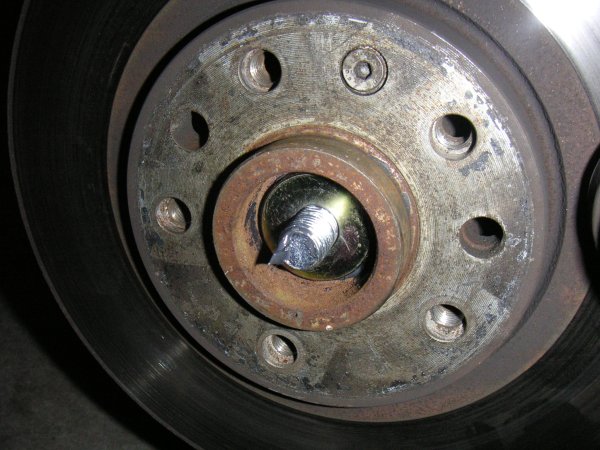

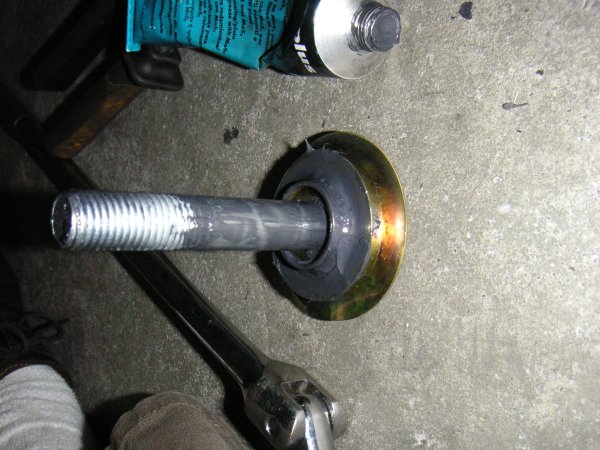

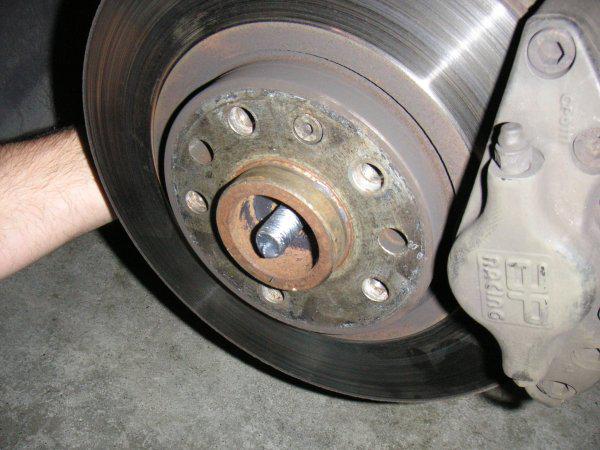

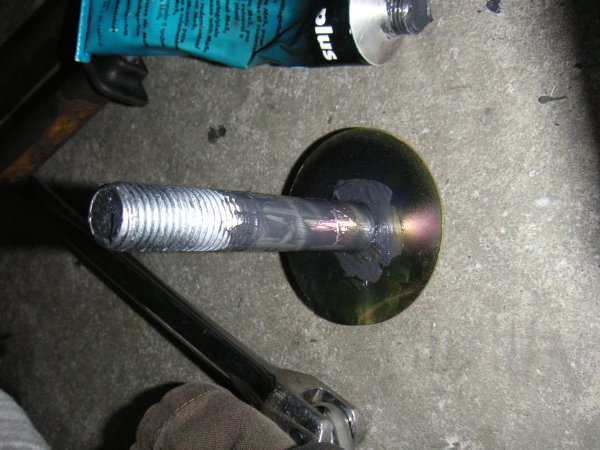

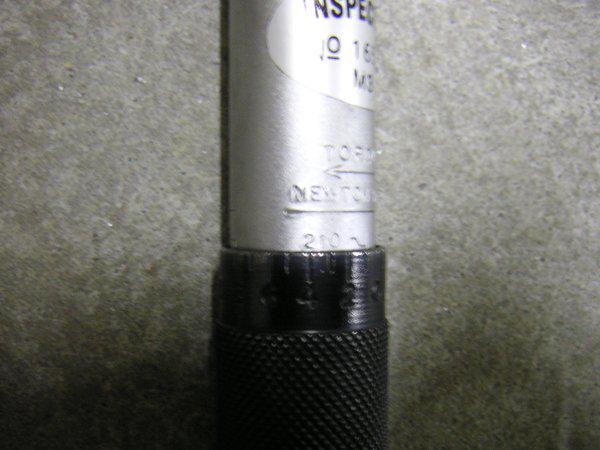

Then grease up the bolt.  add a big washer and grease up  add the second washer and grease up  put the bolt with washers through the hub  put the final washer on (with grease ofcourse)  get your torque wrench out and put it at 210Nm (end of the scale for

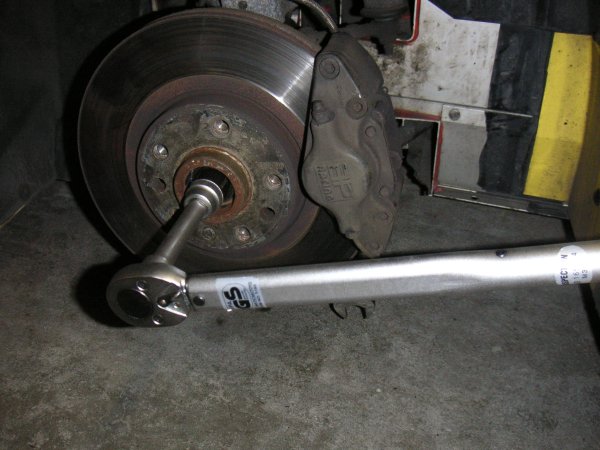

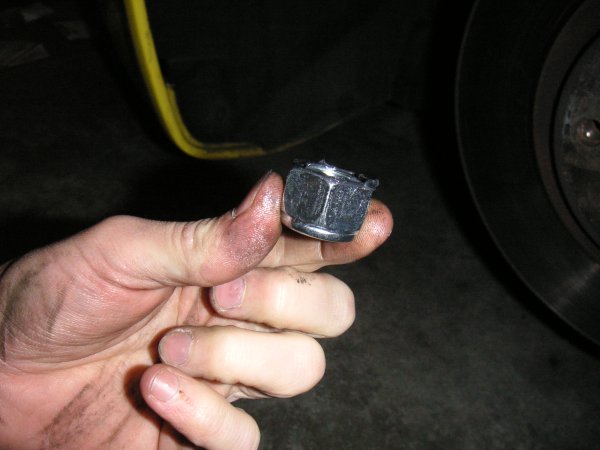

mine, not very acurate, but should be near enough)  put a bit of grease on the nut  put the torque wrench on and try and get it to 210Nm (put a spanner on
the bolt head ofcourse).  That's it. Put the wheel back on and do the other side. Job done. |
